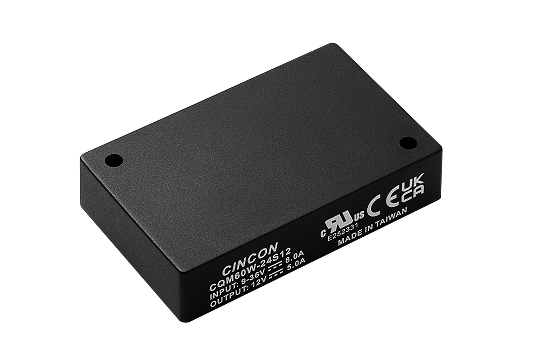

New Cincon CQM60W Series: 60W Medical Quarter-Brick DC-DC Converter for CF-Rated Applications

Share on

Jan

#Product Press Release#DC-DC Converter#Medical

Jan 06, 2026

Key specs:

The newly introduced Cincon CQM60W series represents a significant advancement in medical DC-DC power conversion, delivering high-performance 60W power in a compact, industry-standard quarter-brick form factor. A defining characteristic of this series is its robust reinforced isolation, providing 5000Vac input-to-output isolation which ensures compliance with IEC/UL 60601-1 3rd Edition standards and 2 MOPP (Means of Patient Protection) safety requirements.

To accommodate the varying voltage needs of modern medical instrumentation, the Cincon CQM60W features a wide 4:1 input voltage range of 9-36Vdc and offers a comprehensive selection of regulated outputs, including single voltages of 5, 12, 15, and 24Vdc, as well as dual output options of ±12 and ±15Vdc. Furthermore, the series demonstrates high energy efficiency, reaching up to 93.5%, which is critical for maintaining thermal stability in compact device enclosures.

Exceptional Performance:

Designed to address the rigorous demands of healthcare environments, the Cincon CQM60W series excels in performance metrics that are vital for patient safety and system reliability. Optimized for Type CF (Cardiac Floating) applied parts, the unit features an exceptionally low touch leakage current of less than 4.5uA, making it safe for medical devices that have direct contact with the patient’s body.

From a system integration perspective, this series offers superior responsiveness with a fast output voltage start-up time of typically 15ms, a significant improvement over the 30ms often seen in competing models. The series is also built to endure harsh operating conditions, capable of functioning across a wide ambient temperature range from -40°C to 105°C and operating at altitudes up to 5000m, ensuring consistent performance whether in a controlled hospital setting or a mobile medical unit.

Full Protections:

Prioritizing both system reliability and patient safety, the Cincon CQM60W series reinforces the protection architecture with 5000Vac I/O isolation and IEC/UL 60601-1 3rd Edition (2xMOPP) certification. Beyond these safety barriers, the module integrates comprehensive auto-recovery mechanisms for OTP, OCP, OVP, UVLO, and SCP to autonomously handle abnormal circuit conditions. The design also ensures robust immunity against electromagnetic interference, strictly adhering to EN 60601-1-2 standards for reliable operation in electrically noisy healthcare environments.

Applications:

Optimized for Type CF (Cardiac Floating) applied parts with ultra-low leakage current, the Cincon CQM60W is the preferred power solution for safety-critical medical systems. It reliably powers advanced imaging equipment such as digital X-ray, CT scanners, and MRI systems. Furthermore, its high isolation creates a crucial safety barrier for invasive and therapeutic devices, including hemodialysis machines, electrosurgical units, microwave/RF ablation generators, and cardiac ablation systems, as well as precision platforms like endoscopes and surgical robotics.
